Liquid Crystal Spatial Light Modulators (SLM) – Modulation of ultrashort laser pulses
You can use Jenoptik liquid crystal light modulators to control optical characteristics safely and reliably without mechanical moving parts.

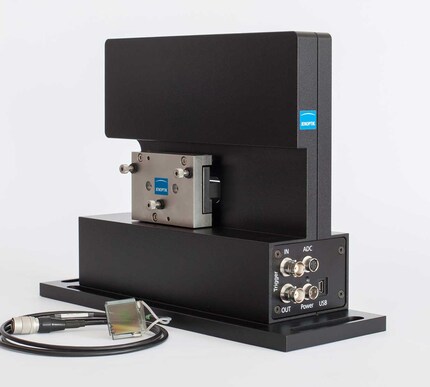

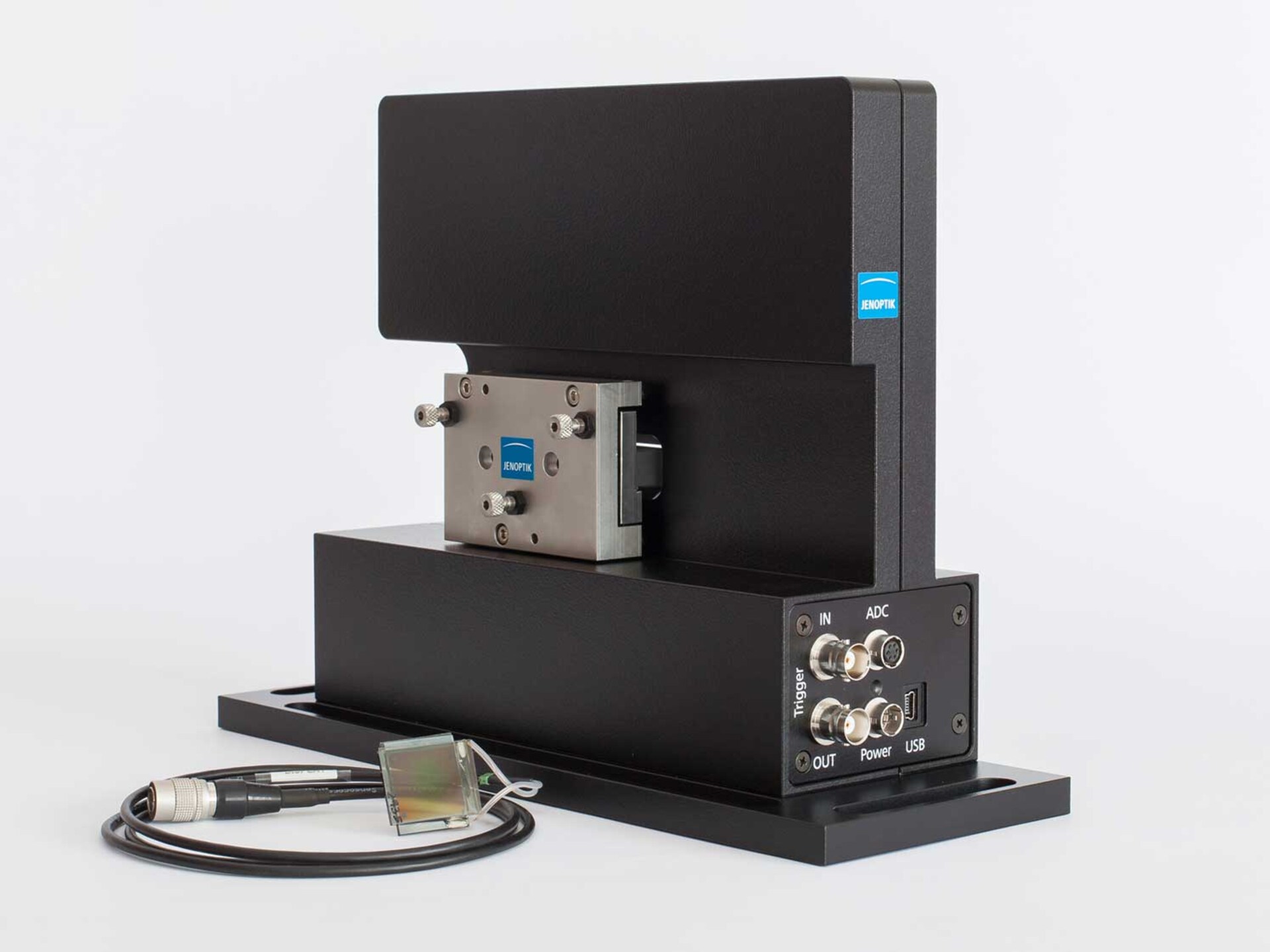

![Liquid Crystal Spatial Light Modulator from Jenoptik](/-/media/websiteimages/optics/light-modulators/liquid-crystal-spatial-light-modulator-slm.jpg?impolicy=aoiv1&width=620&height=465)
Liquid crystal light modulators are excellently suited for modulating the phase, amplitude or polarization state of a light wave. They are based on the electrical control of optical properties of a nematic liquid crystal layer.
An example of the capabilities of our liquid crystal laboratory is the SLM-S spatial light modulator based on a linear array of individually controllable strips. The modulators work for light in the 430 to 1600 nm wavelength range. They are equipped with a single-mask or a dual-mask array. The dual-mask array makes it possible to control the phase and amplitude simultaneously and independently.
Each of the 320 or 640 strips can be controlled separately with 12-bit resolution. All SLM-series liquid crystal modulators are easy to connect to your computer via USB.
An example of the capabilities of our liquid crystal laboratory is the SLM-S spatial light modulator based on a linear array of individually controllable strips. The modulators work for light in the 430 to 1600 nm wavelength range. They are equipped with a single-mask or a dual-mask array. The dual-mask array makes it possible to control the phase and amplitude simultaneously and independently.
Each of the 320 or 640 strips can be controlled separately with 12-bit resolution. All SLM-series liquid crystal modulators are easy to connect to your computer via USB.
Liquid Crystal Spatial Light Modulators (SLM) – Modulation of ultrashort laser pulses
Benefits
- Powerful: Single-pixel modulators and high-resolution spatial light modulators with a large array for high laser power
- USB interface: Easy to connect to your computer
- Broad wavelength range: 430–1600 nm
- User-friendly operation: Thanks to an extensive LabView command set, MATLAB and C libraries for the SLM-S modulators
- Customized: Adapted to meet your individual requirements, for example with specific antireflection coating
Fields of Application
- Laser and material processing: Pulse shaping of high-power and ultrashort pulse lasers
- Chemistry: Coherent control
- Analytics: Multidimensional microscopy and spectroscopy
- Laser technology: Pulse compression
- Optics: Simple solutions for modulating light, in particular laser light, in the VIS and NIR range
- Photonics: Variable phase/amplitude masks are used for shaping of fs laser pulses whenever researching and implementing ultrafast processes
Download
Jenoptik Liquid Crystal Light Modulators:
