The Opticline CS measurement systems

The Opticline CS systems are the starter systems for optical shaft metrology. Our CS measuring stations are ideal for quality control, and make the optical, non-contact measurement of turned parts much easier.

Opticline CS measurement systems

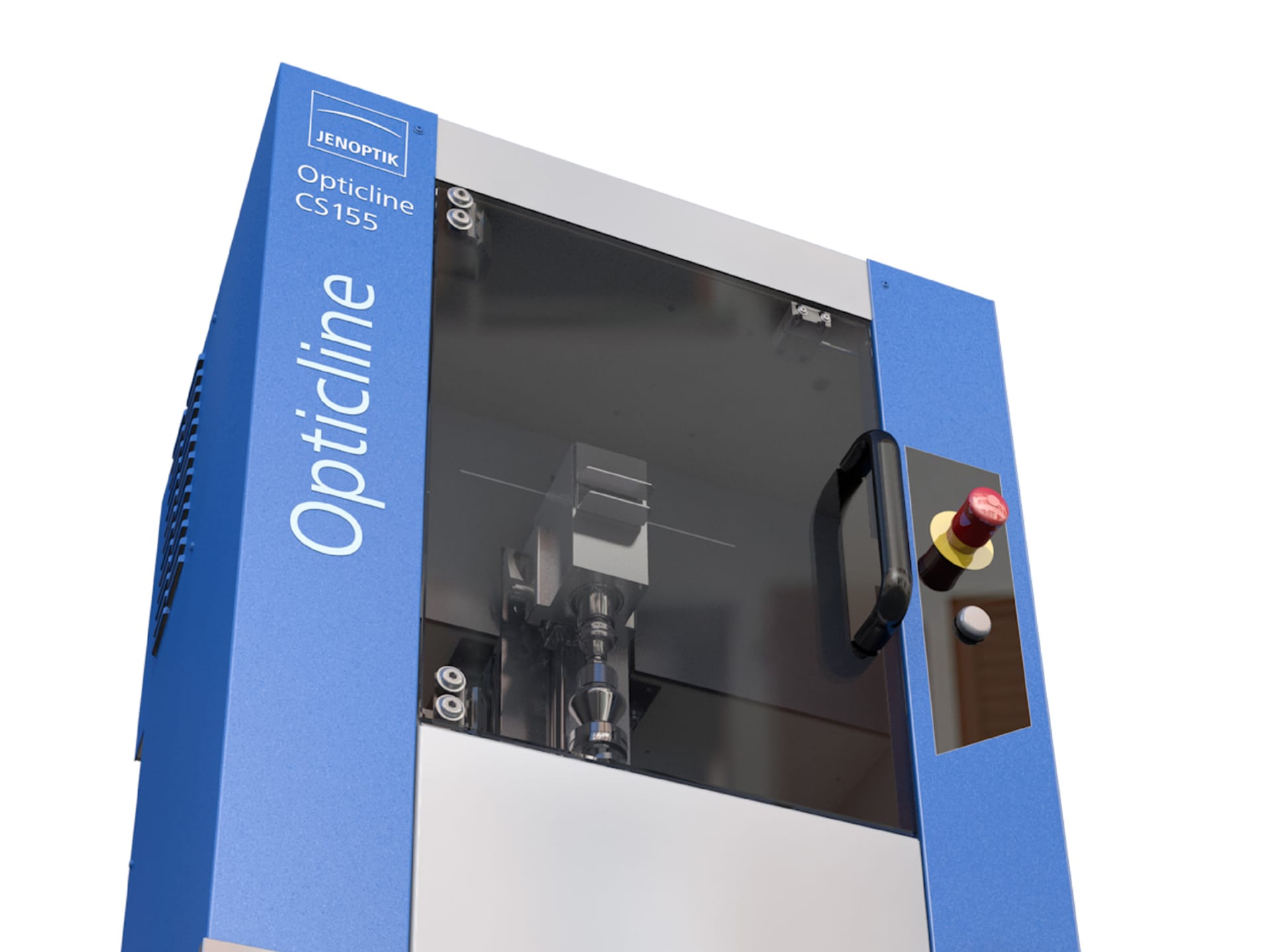

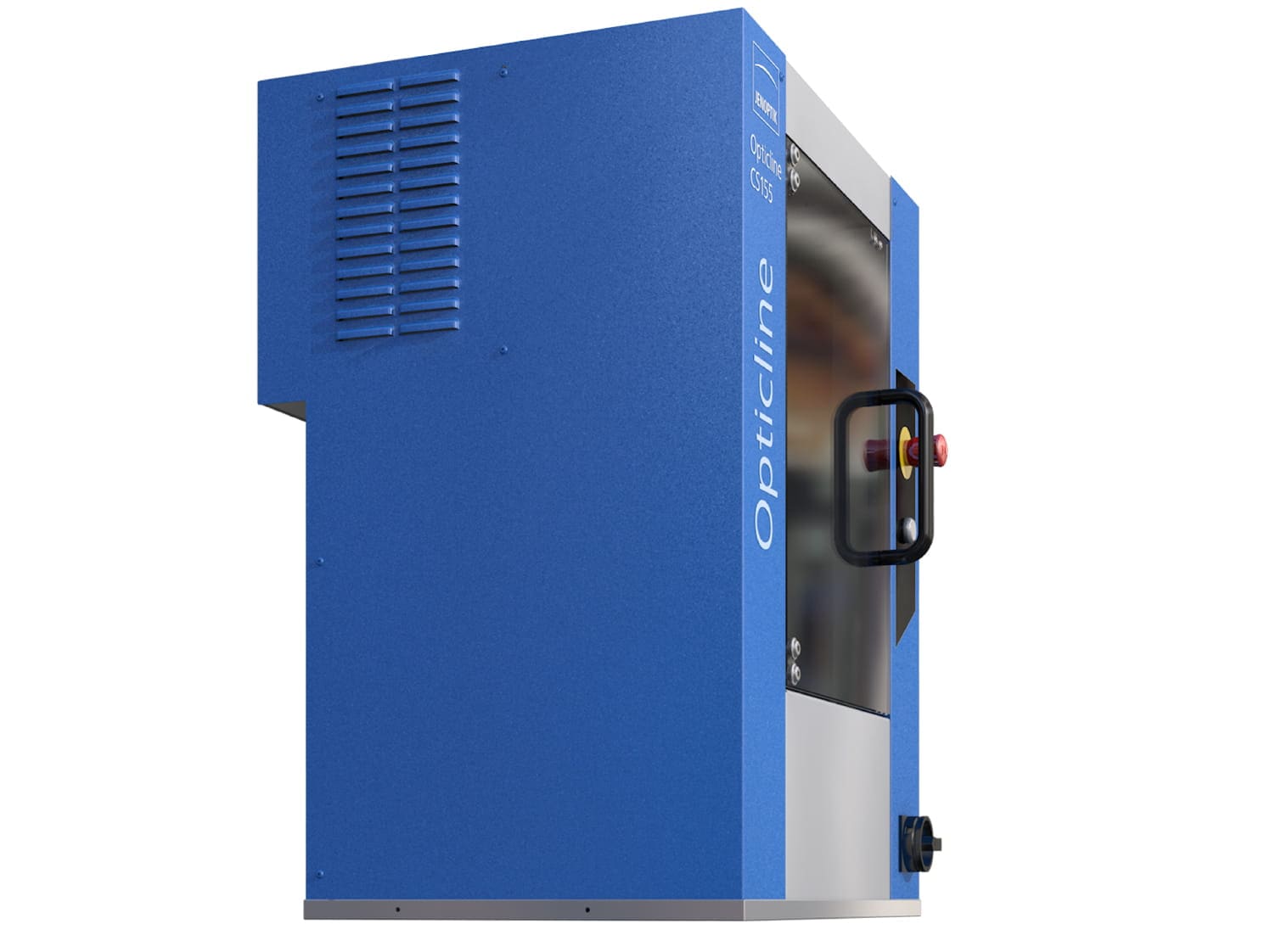

Opticline CS measuring station

The measuring stations of the Opticline CS product range from Jenoptik are specially designed for the demands of turned parts measurement. The systems can be used in manufacturing itself, or in the measuring room. They even function without any problems in the tough production areas of an industrial environment.

Fitted with various interfaces for statistical process control (SPC) the Opticline CS systems allow extremely efficient monitoring of the manufacturing process, and allow rapid intervention where necessary. This ensures that you can produce turned parts of a consistently high quality. The measuring systems are simple to operate, allow non operator-dependent measurement results, and deliver easy to understand measurement results with analysis functions where required.

Measuring Capacity

30

Minimum Diameter in mm

140

Maximum Diameter in mm

150

Minimum Length in mm

1200

Maximum Length in mm

Benefits

  • Robust design for use in production
  • Easy, fast and flexible measurements
  • User-independent results
  • Mechanisms for device self-monitoring
  • Automated measuring runs
  • Easy to operate and program
  • Statistics capable and conclusive reporting

Applications

  • Turned part manufacturers

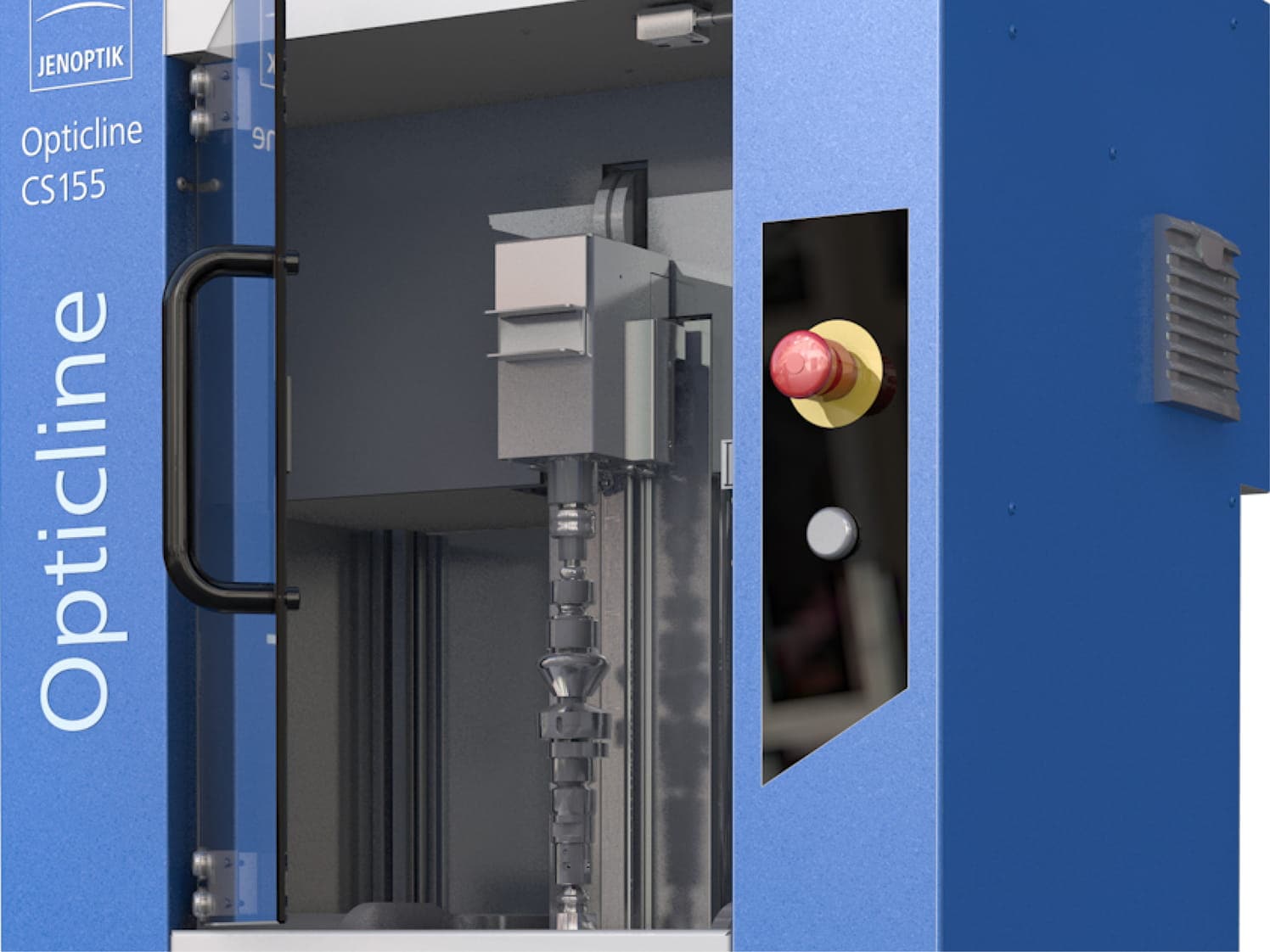

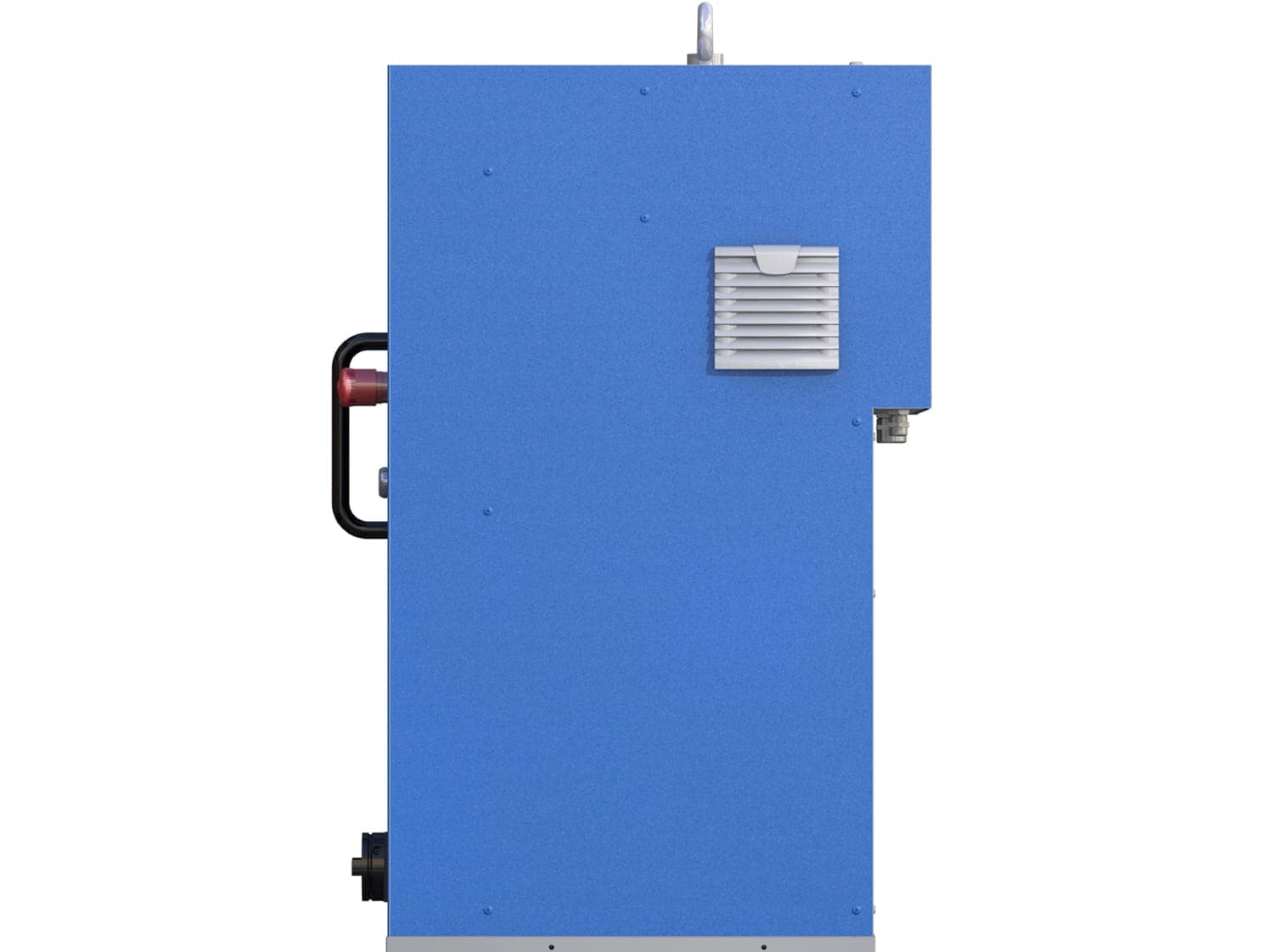

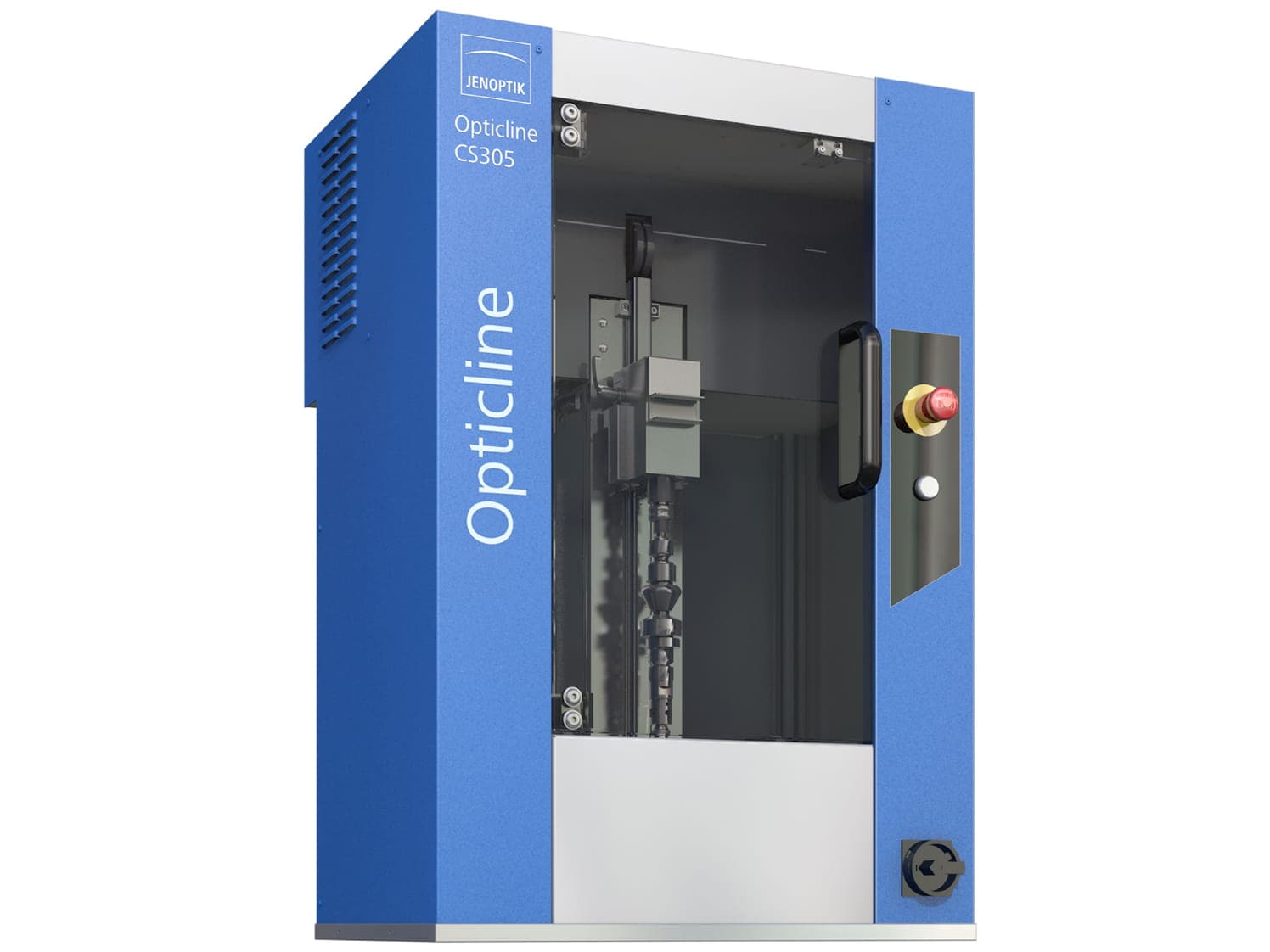

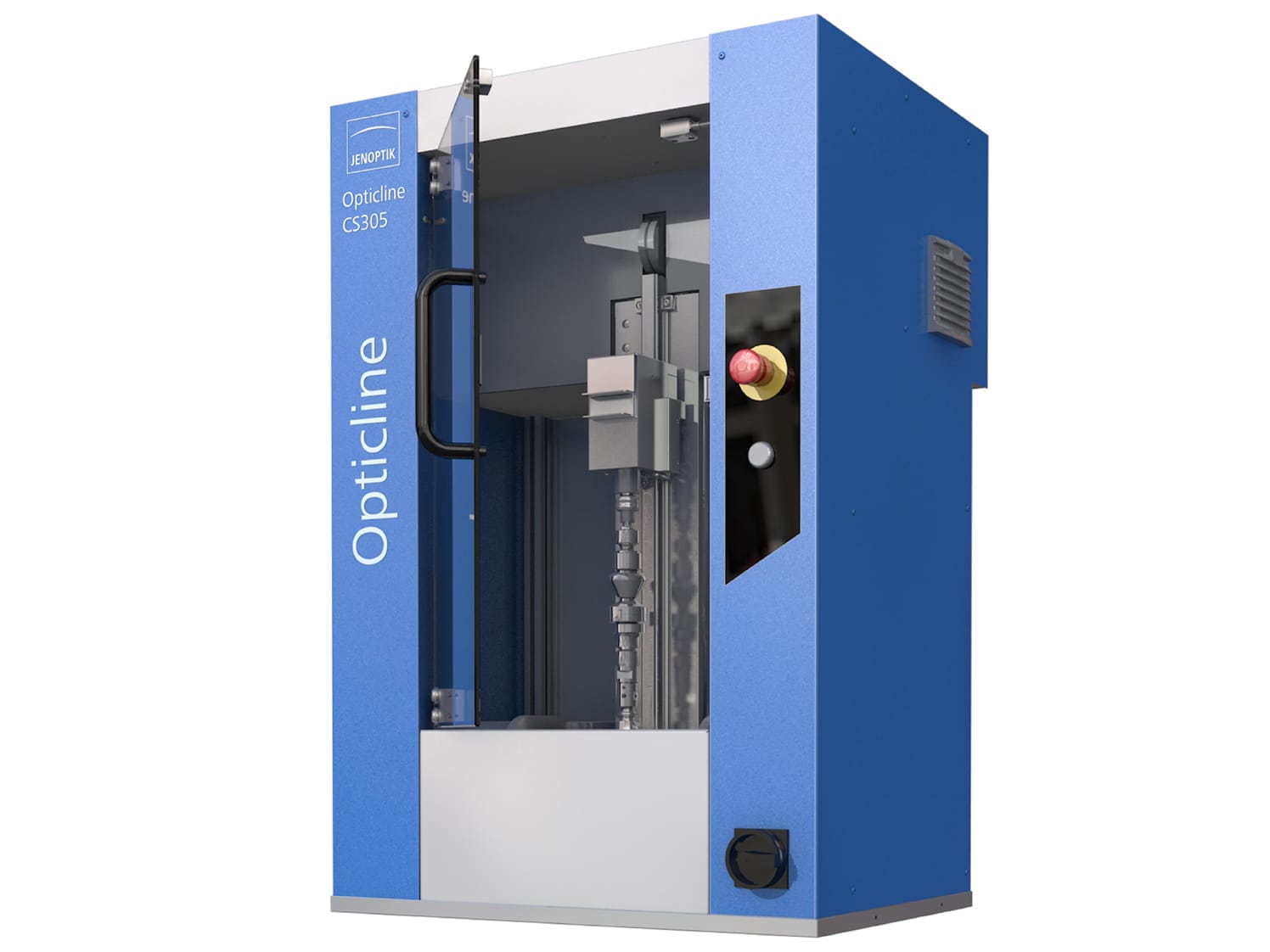

Product Views
