JENvelt® vision-enhanced laser tool

Name: JENvelt™ Vision-enhanced laser tool - Smart optical system platform for laser material processing
Brand: Jenoptik

Quickly to integrate optical system platform for laser material processing of plastics, metals and other materials.

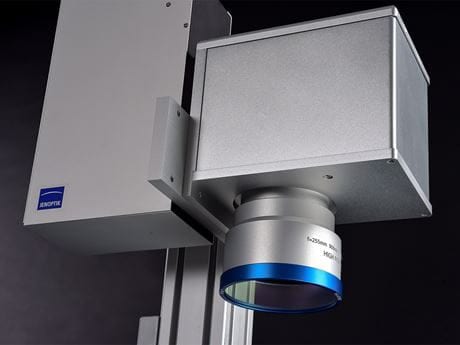

With the new vision-enhanced laser tool, Jenoptik provides an optical system for integration into laser production systems for material processing. As a compact "plug-and-play" system, it is easy to integrate and takes into account the process-related requirements of laser production. The system combines a 2D galvo scanner, F-Theta lens and camera with integrated image processing and intelligent software. System integrators benefit from shorter development times and a smart software solution that guarantees the user fast deployment.

The core of the system is the "All-in-One" software, which combines scanner and laser control as well as image recognition with artificial intelligence. It depicts production projects, ensures monitoring of the running process as well as evaluation and feedback of the acquired data into the control system.

From 2020 Jenoptik will be offering the vision-enhanced laser tool. The appropriate hardware and the corresponding optical system can be determined with test positions and individual application consulting. Customers also benefit from high-quality coated optics, calibrated hardware and pre-assembled software modules that are relevant for the respective application.

Benefits

Compact "plug-and-play" system
Easy to integrate
Monitoring of the running process

Applications in Laser material processing

Engraving

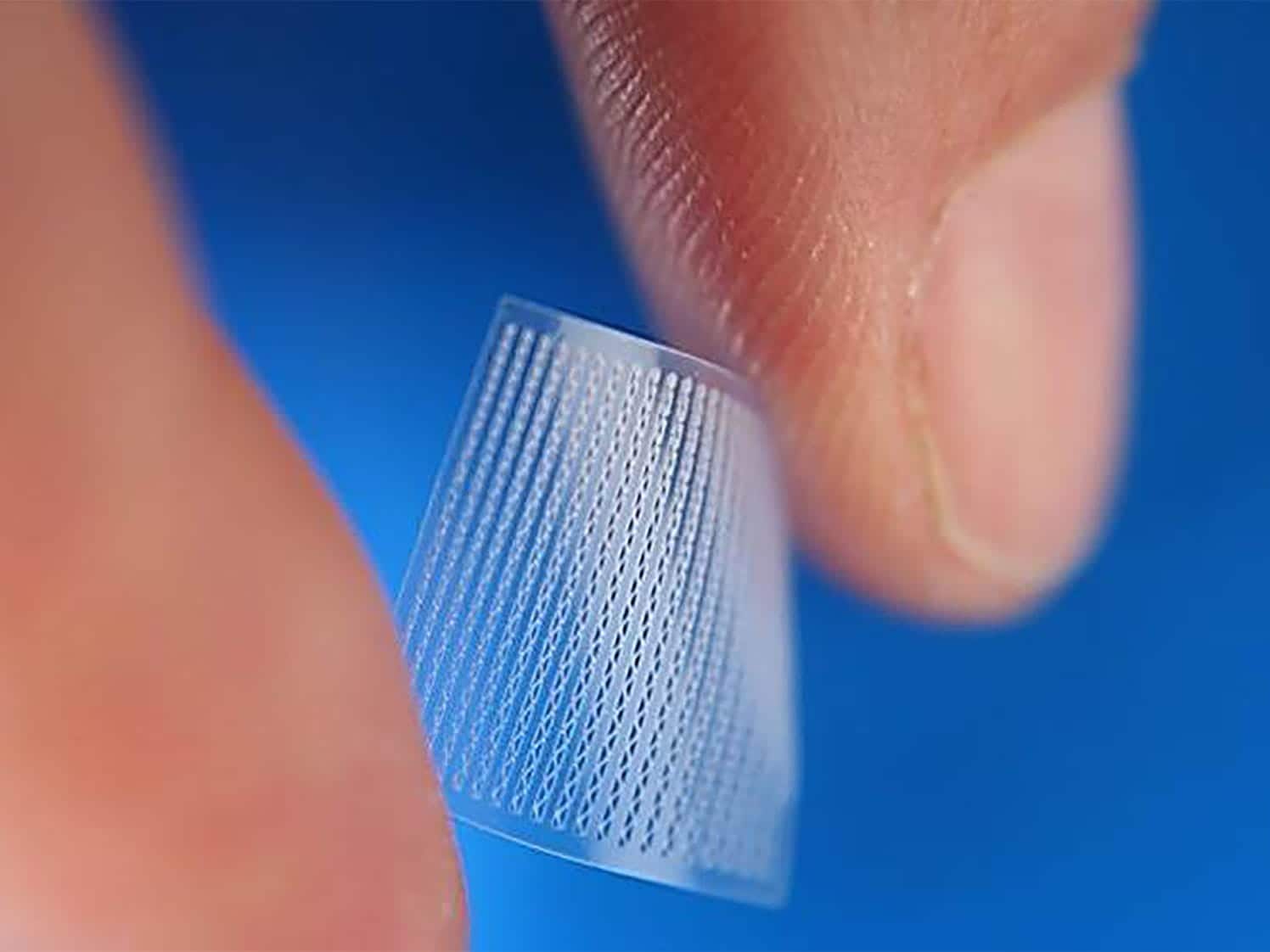

Drilling
Marking
Welding of plastics or metal

Jenoptik JENvelt® - Explantation of Jenoptik Vision-enhanced Laser-Technology

Applications in Laser material processing

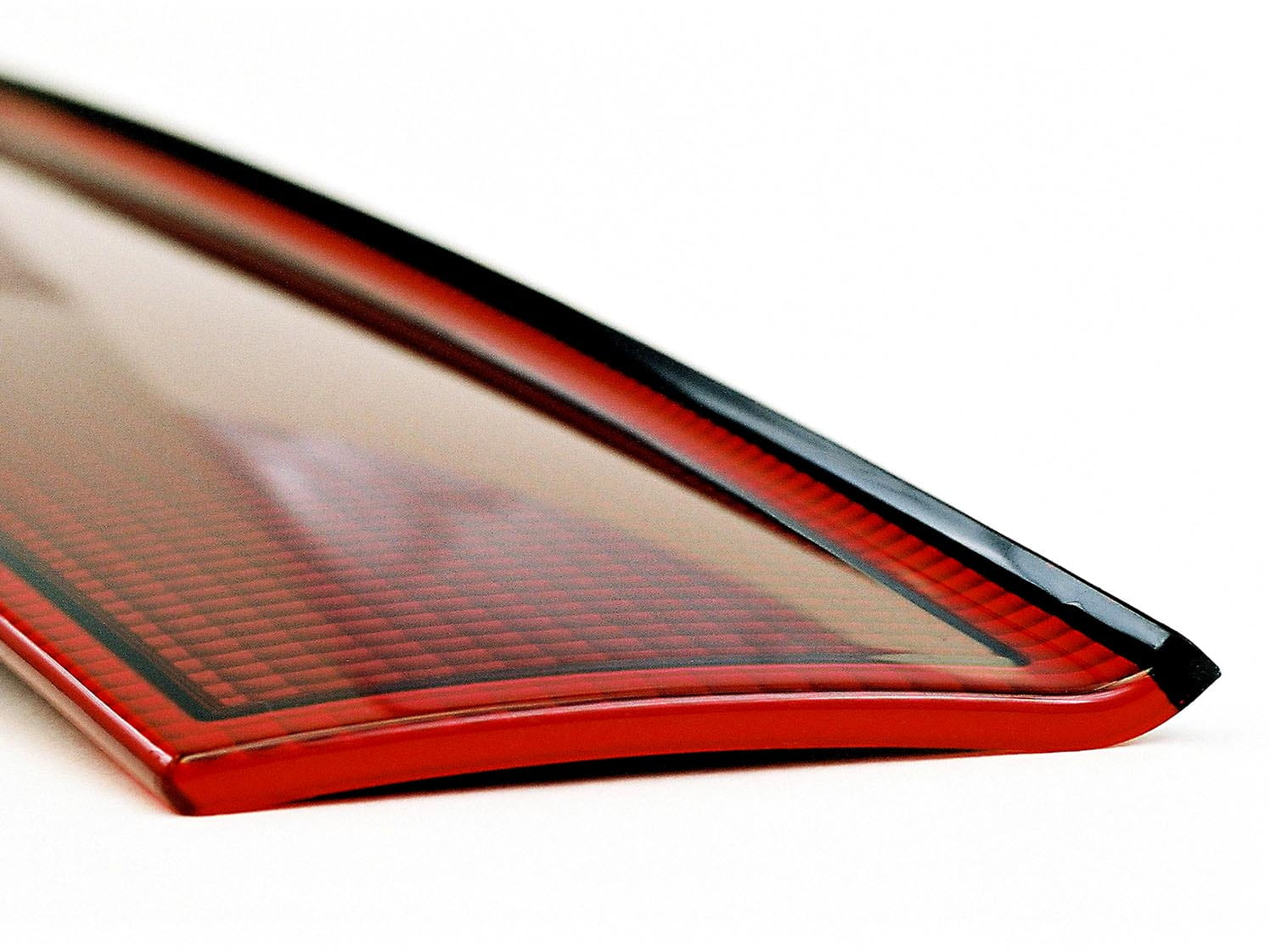

Laser-welded backlight — **Laser welding of illumination elements**

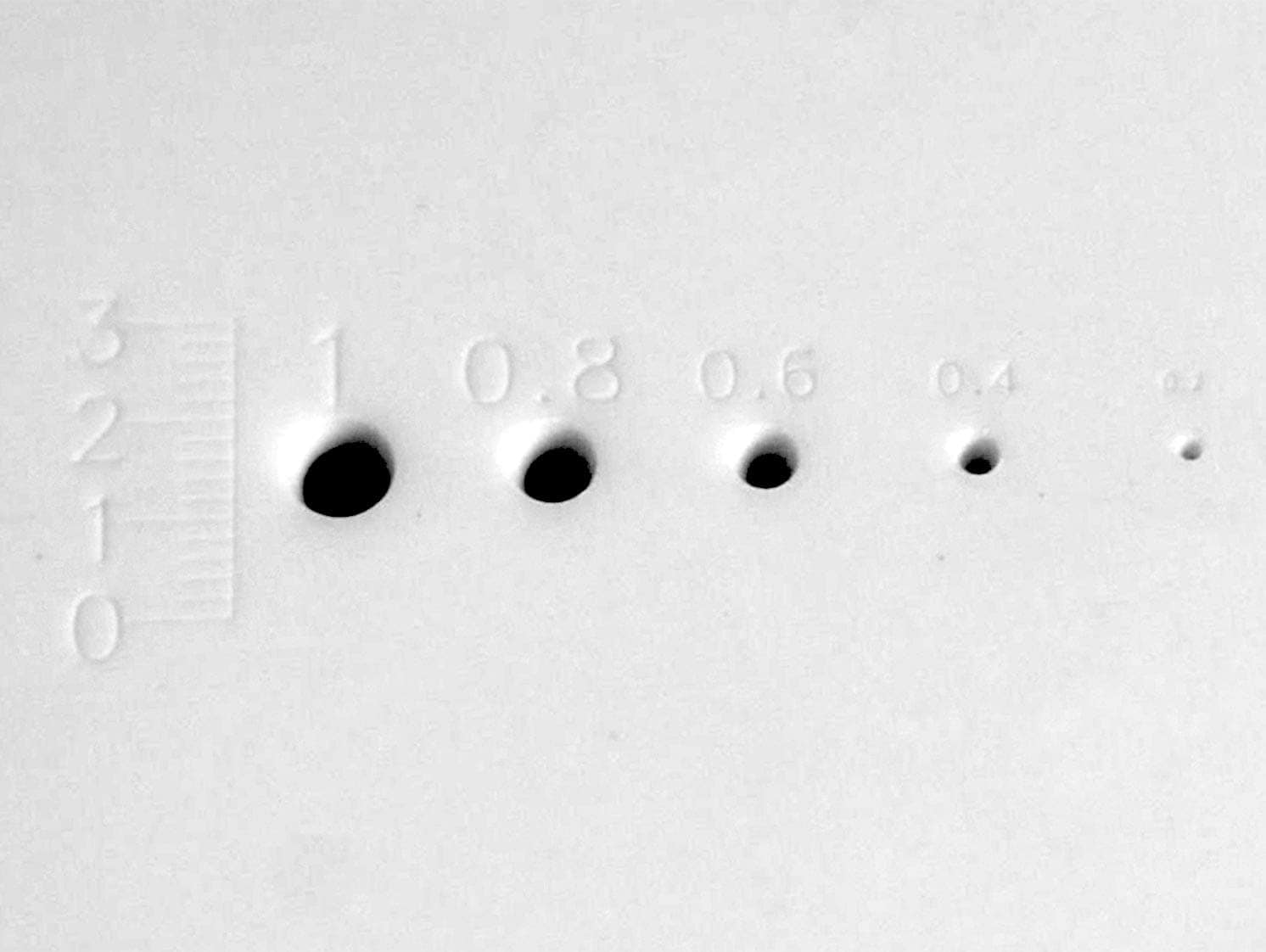

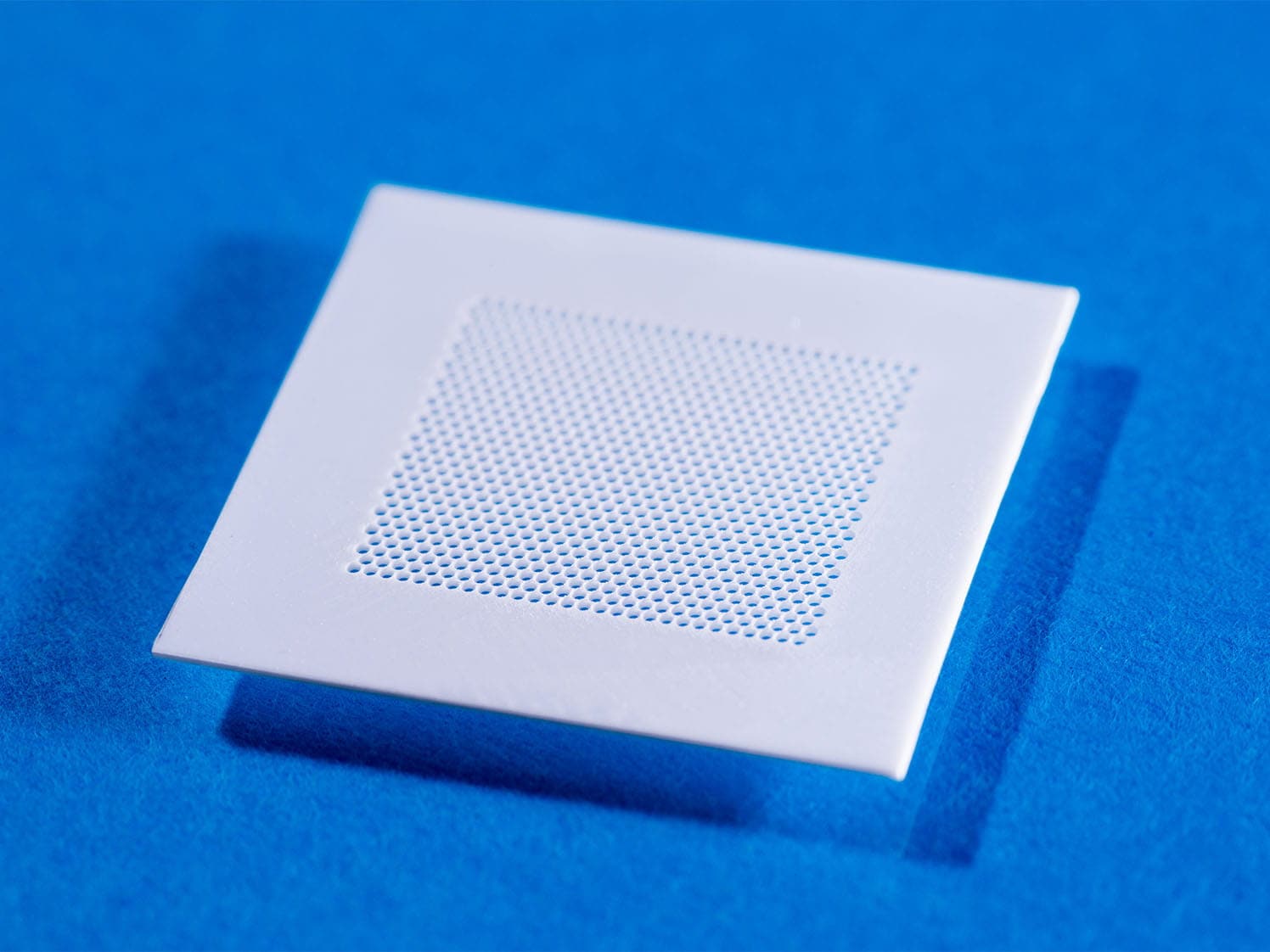

Cold marking and drilling of 1mm Al2O3 ceramics (medical consumables)

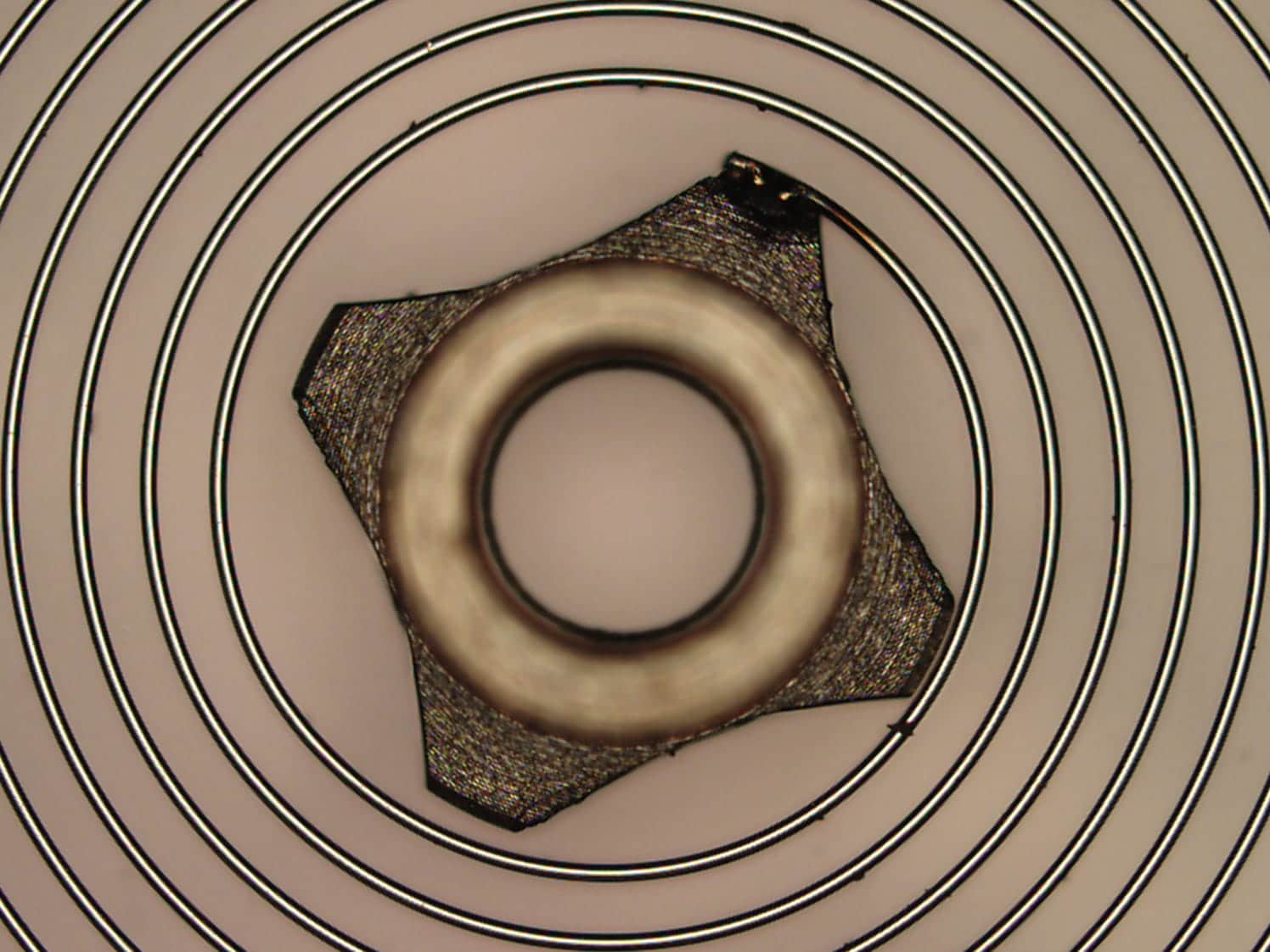

laser welding of steel with a fiber laser

vorheriges Bild anzeigen nächste Bild anzeigen

Benefits of the JENvelt vision-enhanced laser tool

Smart plug-and-play system solution

The core of the system is the "All-in-One" software, which combines scanner and laser control as well as image recognition with artificial intelligence. It depicts If a production order has been set up and optical markers are defined for the exact positioning of the laser spot, ´prooves´ and ´compares´ the device determines the position of the workpiece relative to the laser spot during the running process and repositions it if necessary. This is done with a positioning and repeat accuracy of up to 10 µm. The position of the laser spot is always exactly at the predefined position, independent of the shape and position tolerances of the component.

Complex clamping fixtures become obsolete or can fail more easily if they are necessary due to the process. The process is particularly advantageous when machining workpieces that are manufactured with comparatively high tolerances, such as plastic parts in the injection molding process. An increased good yield from the first component improves the production result and productivity.

Calibration at the touch of a button ensures flexible and fast machine changeover, for example in the case of changing production orders. Consistently high accuracy and reproducible results make production more efficient.

Software Features

All-in-one software solution
Combines classic laser setup software with image channel
Image recognition features - Object recognition
Coax image channel - thus very high resolution ("stitching" of the image)
Positioning of the laser relative to the recognized features
High precision
Software works independently from laser and scanner used

Innovative solutions at competitive costs

The Jenoptik JENvelt vision-enhanced laser tool is the perfect synergy of high quality hardware, smart software and service offerings which enables our customers to focus on their key competencies.

Increased first part yield

The integrated vision channel is perfectly aligned and calibrated to the galvoscanner. In combination with our software solution we ensure the positioning of the laser spot independent from positional and shape tolerances of the part to be processed.

Increased productivity

Our software solution is combining laser related programming tasks (settings like laser power, pulse rep. reates, modulation of laser energy, etc.), galvoscanner related programming tasks (settings like speed, jumps, number of cycles, etc.) and vision related programming tasks (settings like illumination, gain, pattern recognition, etc.) in one software, easy and fast process setup, intuitive handling, fast setup cycles.

Reduced production costs

The capability of surely recognizing the part position or contour position enables our customers to re-think the overall machine concept – processing different variants, for some processes even no fixture is needed, less laser power is needed as you always hit your target or even weakened part tolerances are possible as the system always follows the real path or recognizes the real position. This feature leads to reduced fixture costs and reduced part costs.

Faster time-to-market

Setting up laser processes is time consuming and not easy. Our vision channel helps to reduce the setting-up times significantly. In particular this is important for customers that work on different and frequently changing tasks. Our software is helping to find the right parameters in an intelligent way.

Flexibility from a single source

Setting up laser processes is time consuming and not easy. Our vision channel helps to reduce the setting-up times significantly. In particular this is important for customers that work on different and frequently changing tasks. Our software is helping to find the right parameters in an intelligent way.
