High accuracy and beam stability for 3D printing applications with F-Theta lenses from Jenoptik
Why F-Theta lenses are essential in 3D printing

F-Theta scan lenses are critical for directing laser beams with pinpoint accuracy across the build surface. This enables precise layer-by-layer solidification of photopolymers or powder-based materials, forming intricate, high-quality 3D objects. With Jenoptik’s experience and expertise in optical design and manufacturing, laser system manufacturers and intergator benefit from repeatable precision, optical robustness, and faster production cycles.
Our new F-Theta lens JENarTM APTAlineTM 639-1030…1080-580-AL is made for 3D-printing applications, especially for Selective Laser Sintering (SLS), that requires a high degree of precision and accuracy.

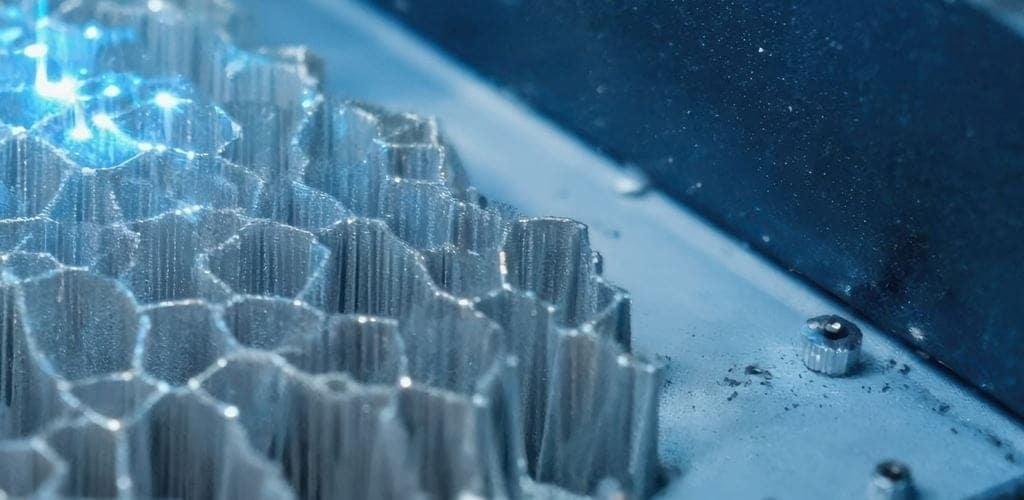

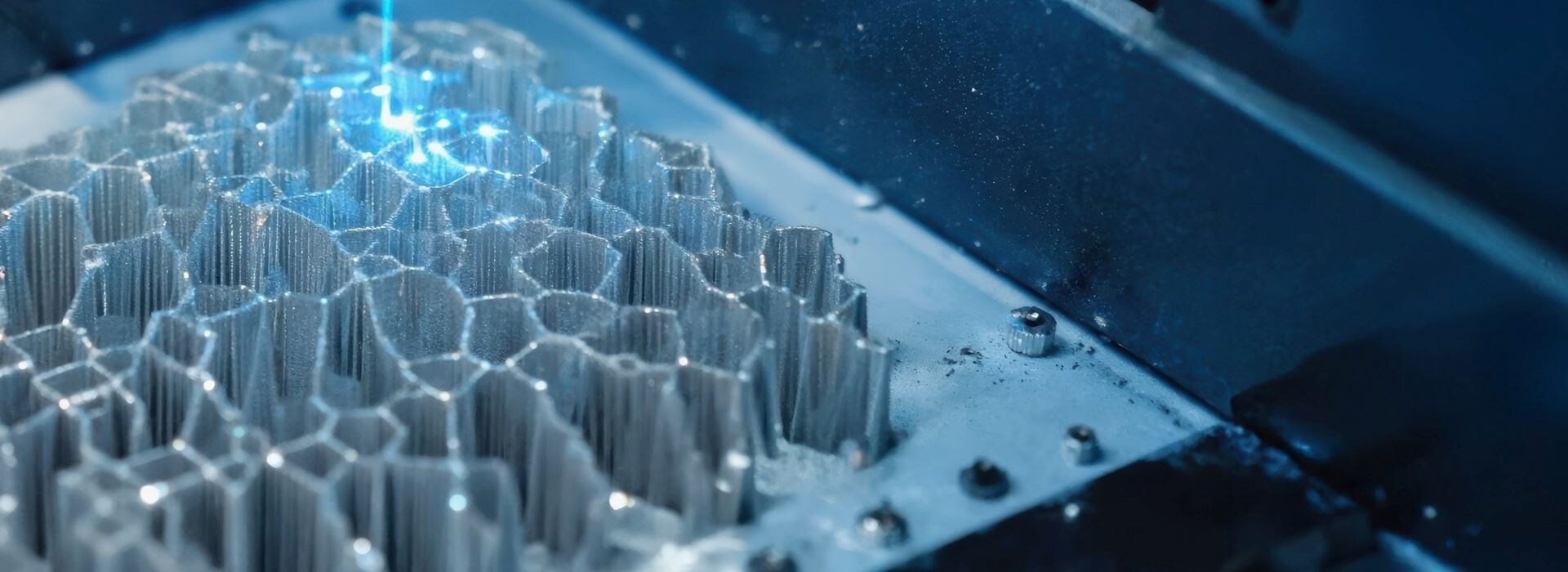

A plastic or metal powder is applied layer by layer and the powder particles are melted with a laser at the desired points to form a solid structure. The F-theta lens plays a key role here, as it focuses the laser beam onto the printing surface over the entire working area with limited diffraction.
As all the F-Theta lenses from Jenoptik, the JENarTM-APTAlineTM-639-1030...1080-580-AL is durable and reliable even in high-power or ultra-short pulse lasers applications thanks to its quartz glass optics, high-quality coating and minimized back reflections.

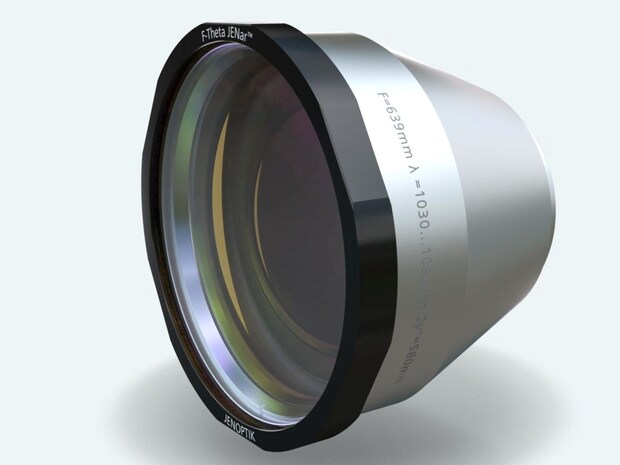

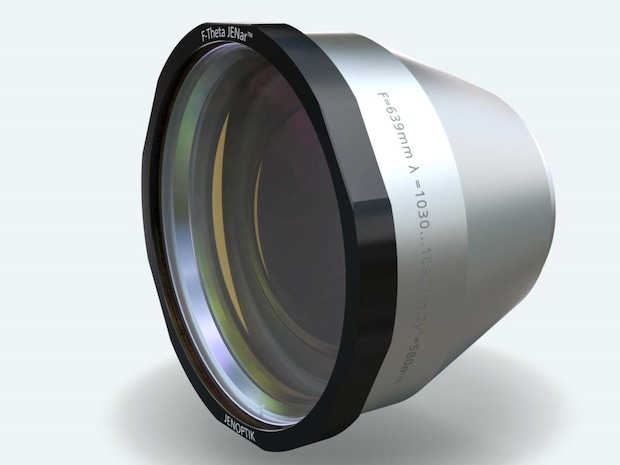

Introducing the F-Theta JENarTM APTAlineTM 639-1030…1080-580-AL

- Excellent homogeneity across the full scan field, ensuring uniform exposure and curing of printing materials.
- High beam stability for accurate laser positioning and repeatable results in additive manufacturing.
- Minimized back-reflections, making it suitable even for high-power and ultrashort-pulse (USP) lasers.
- Durable and reliable optical design, using fused silica and advanced coatings for maximum longevity.
- Cost-effective performance, that allows optimized throughput and lower production costs without compromising quality.
Key technical features
- Wavelength range: 1030–1080 nm
- Focal length: 639 mm
- Scan field: 410 mm × 410 mm
