High-Performance Multispectral Objective Lenses for Use with Analog and Digital Reflex Cameras

With our objective lenses, you can capture very high-quality multispectral images.

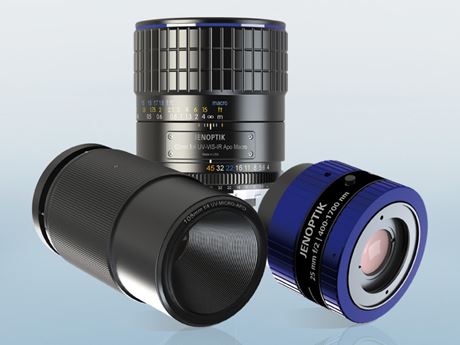

Multispectral objective lens 60 mm for UV, VIS, IR
Multispectral objective lenses from Jenoptik are characterized by their outstanding focus correction, from the UV range to infrared. UV CoastalOpt® SLR objective lenses are ideal for use as an alternative to the Nikon 105/4.5 UV Nikkor objective lens. The CoastalOpt® UV-VIS-IR objective lens can be used with analog and digital reflex cameras with UV or infrared sensitivity. These include backup cameras with modified sensor filters and existing cameras such as the Fuji IS Pro DSLR.

CoastalOpt® multispectral objective objective lens includes a 25.5-mm threaded mount for filters. We would be happy to adapt it to your specific requirements. The multispectral objective lens is kept in stock so you can order it at any time.


Benefits

  • High-performance: Can be used from UV to infrared range
  • Compatible: Can be combined with SLR and DSLR cameras
  • Customized: We can produce a thread that meets your requirements

Fields of Application

  • Forensics: Multispectral images
  • Law enforcement: Multispectral images
  • Natural science: Multispectral images
  • Art: Multispectral images

25 mm f/2 400-1700 nm - Hyperspectral Objective lens with Adjustable Iris

25 mm f/2 400-1700 nm
Spectral Range: 400 nm – 1700 nm
Focal Length: 25 mm
Focal Ratio: f/2
Image Format: 9.6 mm x 7.68 mm
Aperture: Adjustable iris
Field of View: 22.1° H x 17.6° V
Transmission: 85 % Average
Diagonal Field of View: 27.6°
Distortion: < 3.5 %
Image Circle: 12.29 mm
Focus Range: Fixed
Minimum Object Distance: 200 mm
Filter Mount:  28 x 1 mm Thread
Mount: C-Mount Locking
Dimensions: 49.6 L x 48.5 Ø
Weight: 195 g
Order Number: 10-03188100


UV-VIS-IR 60 mm 1:4 APO Macro - Multispectral High Performance lens

UV-VIS-IR 60 mm 1:4 APO Macro
Focal Length: 60 mm
Focal Ratio: f/4 - f/45
No. of Elements/Groups: 10/9
Image Format: 24 mm x 36 mm
Transmission Waveband: 290 mm- 1500 nm
Apochromatic Waveband: 315 nm - 1100 nm
Focus Range: 264 mm to infinity
Maximum Magnification: 1 : 1.5
Mounting Flange: Nikon F-Mount
Filter: 52 mm thread (M 52 x 0.75)
Weight:  535 g
Length: 73.4 mm (2.7 in)
Order Number: 10-07109000

105 mm f/4.5 250-650 nm - Multispectral UV SlR lens

105 mm f/4.5 250-650 nm
Spectral Range: 250 nm - 650 nm
Focal Length: 105 mm
Focal Ratio: f/4.5 - f/32
Image Format: 24 mm x 36 mm
Field of View: 26.56° H x 16.68° V
Diagonal Field of View: 29.78°
Distortion: Less than 1 % over the full image format
Image Circle:  43.27 mm
Minimum Object Distance:  300 mm
Filter Mount:  52 mm
Lens Mount:  Nikon F-mount
Dimensions:  5.26” L x 2.70” Ø
Weight:  620 g
Order Number: 10-02315000
