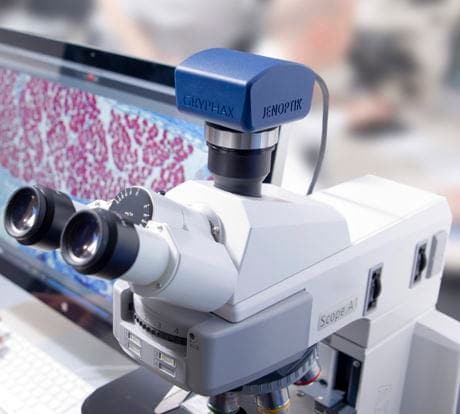

Upgrade your microscope workstation with a microscope camera of the JENOPTIK GRYPHAX® series
Real measured color technology for microscopy
The state-of-the-art USB 3.0 microscope camera range JENOPTIK GRYPHAX®, specifically designed for microscopy, is based on JENOPTIK's true-color know-how and spectrally measured sensors. As a pioneer in the application of Microscanning and Color-co-site-sampling technology, JENOPTIK has continuously developed and perfected this technology, which was established in the early 90s. The result is an amazing true color reproduction of the microscope images that sets the benchmark.
The flagship microscope camera JENOPTIK GRYPHAX® PROKYON delivers real measured colors - absolutely true to the original.
For over 30 years now, JENOPTIK imaging competence has made the full power of any microscope system visible.
JENOPTIK GRYPHAX® cameras is a faithful observer

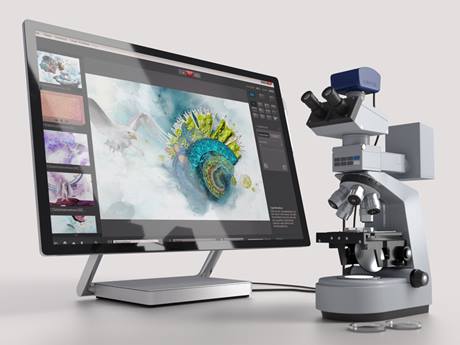

JENOPTIK GRYPHAX® microscope camera software is part of each camera package.
You can easily install this particularly user-friendly software on your WIN, MAC or Linux operating system without any particular skills. All cameras offer live images in video speed and thus facilitate your day-to-day activitie.
Find out more about the features and further options to integrate 3rd party software, free drivers or a free SDK.
JENOPTIK GRYPHAX® cameras is a faithful observer for microscopy applications in the LifeScience & Medical, MaterialScience & Manufacturing and Education galaxies. The infinite number of applications, make different demands on the characteristic of a microscope camera.
The main microscope camera properties are sensor size, sensitivity, dynamic range, frame rate, resolution, monochrome or color, cooling or non-cooling, active or non-active objects.
A further decision criterion for a microscope camera is the contrast technique -
- Bright-field (BF),
- Darkfield (DF),
- Differential interference contrast (DIC),
- Polarization (Pol) or
- Fluorescence microscopy.
Find the most suitable JENOPTIK GRYPHAX® microscope camera for your specific microscope system and application:
NEW! "Cameras compare":
Quickly find the performance parameter differences of the JENOPTIK GRYPHAX® cameras!
JENOPTIK GRYPHAX® - Back illuminated color cameras
PROKYON - The flagship and real measured color
Your superior solution for Life & Medical, Material & Manufacturing and fluorescence application.
Display your moving samples with up to 120 frames per second. Capture your samples in real measured color with up to 21 MPix resolution.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the PROKYON delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With 2 | 9 | 21 MPix, Pixel size 5.86 x 5.86µm, Real measured color, Dynamic range 73 dB, Cooling.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain, DirectX and 3rd party device support for PRIOR stages.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, 120 fps at full HD, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚫ Frame Rate
⚫⚫⚫⚫ Resolution - Recommended Applications
⚫⚫⚫⚫ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚫⚫ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚫ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚫⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚫ Pol
Product-Information
NAOS - With revolutionary 5 & 20 MPix
Your exclusive solution for Life & Medical, Material & Manufacturing application.
Display your specimens with up to 30 frames per second at 5 MPix. Capture your specimens with up to 20 MPix resolution.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the NAOS delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With 2 | 5 | 20 MPix, aspect ratio 3:2, Reliable colors based on real measured color, Dynamic range 72 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1" Sony back-illuminated sensor, 30 fps at 5 MPix.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚫ Sensor Size
⚫⚫⚪⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚫⚫⚫ Resolution - Recommended Applications
⚫⚫⚫⚫ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚫⚫ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚪⚪⚪⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚪⚪ DF
⚫⚪⚪⚪ DIC
⚫⚫⚪⚪ Ph
⚫⚫⚫⚪ Pol
Product-Information
ARKTUR - 4K solution
Your recomended solution Life & Medical Science, Material & Manufacturing application.
Display 30 frames per second at 4k resolution and the largest possible field of view at the monitor.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the ARKTUR delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With 2 | 4 | 8 Mpix, 4k, Reliable colors based on real measured color.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 2/3" Sony back-illuminated sensor, 30 fps at 4k (8 MPix).
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚪⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚫⚫⚪ Resolution - Recommended Applications
⚫⚫⚫⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚫⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚪⚪⚪⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚪⚪ DF
⚫⚪⚪⚪ DIC
⚫⚫⚪⚪ Ph
⚫⚫⚫⚪ Pol
Product-Information
KAPELLA - In low light & bright field | Colored
Your exclusive solution for live cell and fluorescence application.
Display and capture your moving specimens with up to 120 frames per second.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the KAPELLA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With Pixel size 5.86 x 5.86 µm, Reliable colors based on real measured color, Dynamic range 73.3 dB, Cooling.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, 120 fps at full HD, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚫ Frame Rate
⚫⚪⚪⚪ Resolution - Recommended Applications
⚫⚫⚪⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚪⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚫ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚫⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚫ Pol
Product-Information
SUBRA - Full HD solution
Your recomended solution for live cell and fluorescence application.
Display and capture your moving specimens with up to 30 frames per second.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the SUBRA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With Pixel size 5.86 x 5.86 µm, Reliable colors based on real measured color, Dynamic range 67 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software, 1/1.2" Sony back-illuminated sensor, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚪⚪⚪ Resolution - Recommended Applications
⚫⚫⚪⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚪⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚫⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚫ Pol
ALTAIR - Cost efficient with 3 & 12 MPix
Product-Information
AVIOR - Cost efficient with 2 & 8 MPix I 4K
Your superior solution for educations.
Basic solution Life & Medical Science, Material & Manufacturing. Display your samples at 4k resolution at the monitor.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the AVIOR delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With 2 | 8 MPix, 4k, Reliable colors based on real measured color.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚪⚪⚪ Sensor Size
⚫⚪⚪⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚫⚫⚪ Resolution - Recommended Applications
⚪⚪⚪⚪ Life & Medical Science
⚫⚫⚫⚪ Education Life & Medical Science
⚪⚪⚪⚪ Material & Manufacturing
⚫⚫⚫⚪ Education Material & Manufacturing
⚪⚪⚪⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚪⚪⚪ DF
⚫⚪⚪⚪ DIC
⚫⚪⚪⚪ Ph
⚫⚪⚪⚪ Pol
Product-Information
JENOPTIK GRYPHAX® - Back illuminated monochrome cameras
POLARIS - The flagship | Monochrome
Your superior solution for fluorescence application.
Capture with the highest possible dynamic range and the most sensetive camera in the entiere portfolio.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the POLARIS delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With a Pixel size 7.2 x 7.2 µm, Aspect ratio 1:1, Dynamic range 77 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free JENOPTIK GRYPHAX® microscope camera software.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚫ Sensitivity
⚫⚫⚪⚪ Frame Rate
⚫⚫⚪⚪ Resolution - Recommended Applications
⚫⚫⚫⚫ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚫⚫ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚫ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚫ DF
⚫⚫⚫⚪ DIC
⚫⚫⚫⚫ Ph
⚫⚫⚫⚫ Pol
Product-Information
RIGEL - In low light | Monochrome
Your exclusive solution for monochrome fluorescenceapplication.
Display up to 120 frames per second in low light.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the RIGEL delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
JENOPTIK GRYPHAX RIGEL is the successor of ProgRes 1.4 MPix CCD monochrome cameras, like MFcool.
Benefits
- High image quality: With Pixel size 5.86 x 5.86 µm, Dynamic range 73 dB, Cooling.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free GRYPHAX® microscope camera software,1/1.2" Sony back-illuminated sensor, 120 fps at Full HD, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚫ Frame Rate
⚫⚪⚪⚪ Resolution - Recommended Applications
⚫⚫⚪⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚪⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚫ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚫ DF
⚫⚫⚫⚪ DIC
⚫⚫⚫⚫ Ph
⚫⚫⚫⚫ Pol
Product-Information
WEGA - Full HD solution | Monochrome
Your advanced solution for monochrome fluorescence application.
Display up to 30 frames per second in low light.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the WEGA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With Pixel size 5.86 x 5.86 µm, Dynamic range 69 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free GRYPHAX® microscope camera software,1/1.2" Sony back-illuminated sensor, Global shutter.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚫⚫⚪ Sensor Size
⚫⚫⚫⚪ Sensitivity
⚫⚫⚫⚪ Frame Rate
⚫⚪⚪⚪ Resolution - Recommended Applications
⚫⚫⚪⚪ Life & Medical Science
⚪⚪⚪⚪ Education Life & Medical Science
⚫⚫⚪⚪ Material & Manufacturing
⚪⚪⚪⚪ Education Material & Manufacturing
⚫⚫⚫⚪ Fluorescence
⚪⚪⚪⚪ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚫⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚫ Pol
Product-Information
BETRIA - Cost efficient | Monochrome
Your superior education solution for fluorescence application.
Free software with spectacular features like: video tool, panorama tool, EDF tool, remote control, measurement & annotation tool, report tool and more is part of the BETRIA delivery. Optimized workflows an identical user interface on WIN, Linux and MAC OS for efficent work.
Saves your time!
Benefits
- High image quality: With Aspect ratio 4:3, Dynamic range 65 dB.
- Versatility: WIN | MAC | LINUX, Free SDK, 3rd party software support, μManager, Twain and DirectX support.
- Ease of use: Free GRYPHAX® microscope camera software.
- Stability: Made in Germany, 24 month warranty and software updates free of charge.
- Camera properties
⚫⚪⚪⚪ Sensor Size
⚫⚫⚪⚪ Sensitivity
⚫⚫⚪⚪ Frame Rate
⚫⚫⚪⚪ Resolution - Recommended Applications
⚪⚪⚪⚪ Life & Medical Science
⚫⚫⚪⚪ Education Life & Medical Science
⚪⚪⚪⚪ Material & Manufacturing
⚫⚫⚪⚪ Education Material & Manufacturing
⚪⚪⚪⚪ Fluorescence
⚫⚫⚫⚫ Education Fluorescence - Contrast techniques
⚫⚫⚫⚫ BF
⚫⚫⚫⚪ DF
⚫⚪⚪⚪ DIC
⚫⚫⚫⚪ Ph
⚫⚫⚫⚪ Pol
Product-Information
JENOPTIK GRYPHAX® - Software, tutorial, documentation & application
Software benefits & Features
Remarkable benefits of JENOPTIK GRYPHAX® at a glance
What makes your daily work efficient? Time saving and ease of use workflows with premium quality products made in Germany.
JENOPTIK GRYPHAX® software is workflow optimized ease to use and offers the relevant microscopy features. For those who want to enjoy flexibility, and more functionality drivers like TWAIN, DirectX®, open source microscopy software like µmanager and others are available.
- Ease of use
- Automatic, fast exposure control
- Live-image optimized: ocular view - adapt color impressions from ocular to the images
- Image comparison (side by side)
- Video recording - High image quality
- Jenoptik color interpolation based on real measured color
- Measured data based on EMVA 1288 guidelines
- Real time image enhancements @ live - Stability
- Device configuration - to define multiple microscope settings
- User profile for excellent, reproducible image results
- Software and updates free of charge
- Each release is certified tested - Versatility
- Research life with fluorescence tool
- Examine elements with panorama & z-stacking tool
- Evaluate quality with measurement tool
- Reveal truths with true color know-how
JENOPTIK GRYPHAX® software features
- Ease of use
- Exposure tool
- Time-lapse mode
- Video mode
- Image analysis function
- Measurement & annotation tool
- Monochrome mode
- Camera server tool - High image quality
- Histogram tool
- FX tool
- Color tool - Stability
- User profiles function - Versatility
- Panorama tool
- Z-Stacking tool
- Multi-Fluorescence tool
- High speed & Slow motion Video tool
Software download & Video tutorials
JENOPTIK GRYPHAX® software is workflow optimized ease to use and offer the relevant microscopy features.
Watch our video tutorials and learn more about the remarkable features like panorama function.
The JENOPTIK GRYPHAX® Software package is included in the scope of delivery.
Registered users may download the current version as well as more recent updates without charge.
Efficient!
Our video tutorials:
JENOPTIK GRYPHAX - 1 - Introduction of GUI
JENOPTIK GRYPHAX - 2 - Preferences
JENOPTIK GRYPHAX - 3 - Device Configuration and Status Bar
JENOPTIK GRYPHAX - 4 - Image Settings
JENOPTIK GRYPHAX - 5 - The Gallery
Remarkable software feature
JENOPTIK GRYPHAX - 6 - Side By Side tool
JENOPTIK GRYPHAX - 7 - Multi Fluorescence tool
JENOPTIK GRYPHAX - 8 - Automatic Panorama tool
JENOPTIK GRYPHAX - 9 - The Automatic Z-stacking tool
JENOPTIK GRYPHAX - 10 - Measurement tool
JENOPTIK GRYPHAX - 11 - Video tool
Quick start & General instruction
What makes your daily work efficient?
Time saving and ease of use workflows with premium quality products made in Germany.
The guideline for your quick start with your JENOPTIK GRYPHAX® microscope camera below.
Timesaving!
Recommended applications
JENOPTIK GRYPHAX® cameras are predestined for your application in
- Life & medical science
- Pathology
- Cell biology
- Oncology
- Neuroscience
- Entomology
- Plant Biology
- Dentistry
- Fluorescence
- Cell culture
- Ophthalmology
- and more… - Material science
- Geology & environmental science
- Sample preparation
- Art conservation and natural resource science
- and more… - Industry & manufacturing
- Medical device production
- Automotive & transportation
- Quality control
- Metals & machine engineering
- Watch making industry
- Semiconductor & microelectronics
- Manufacturing
- and more… - Education
- Life science
- Earth science
- Material science Forensic
They capture confident and reliable your daily work with real measured colors.
Confident!
explore your micro universe
Benefits
- High image quality: Professional Jenoptik image quality, based on real measured colors by use of color-co-site sampling & microscanning, Perfect color reproduction by use of spectrally measured sensors.
- Versatility: Cross-platform compatible for WIN, MAC & Linux, Identical GUI across WIN, MAC & Linux platform, Suitable for all microscope brands. Free SDK available, Twain, Direct X® and 3rd party software support.
- Ease of use: User-friendly and intuitive microscope camera software, Optimized workflows, Live-image optimized, all features in real time, all the time, Time-saving and easy installation.
- Stability: USB 3.0 camera interface, Secure investment: long-lasting & reliable hardware, Secure investment: long-term software support & operating system compatibility.
Fields of Application
- Life & medical science: Pathology, Cell biology, Oncology, Neuroscience, Entomology, Plant Biology, Dentistry, Fluorescence, Cell culture, Ophthalmology, and more…
- Material science: Geology & environmental science, Sample preparation, Art conservation and natural resource science, and more…
- Industry & manufacturing: Medical device production, Automotive & transportation, Quality control, Metals & machine engineering, Watch making industry, Semiconductor & microelectronics, Manufacturing, and more…
- Education: Life science, Earth science, Material science Forensic.
Software options
for image analysis with JENOPTIK GRYPHAX® cameras in industry & science
find out more
GRYPHAX® cameras for micro photography
GRYPHAX combines brilliant vision, a huge wingspan, dynamic maneuverability, bounce and surefootedness.
find out more
FAQ - JENOPTIK GRYPHAX®
for JENOPTIK GRYPHAX® software and camera
find out more
Do you have any questions? Please contact us for advice.
